Plotter
What is a Plotter?

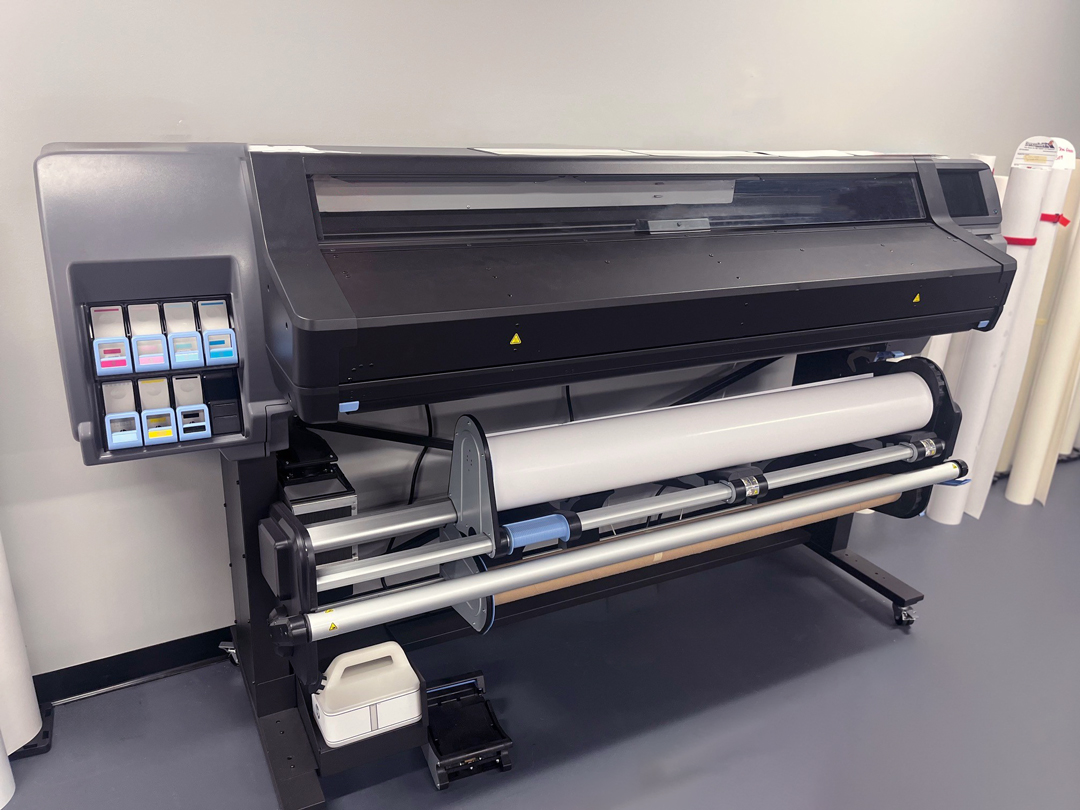

Also sometimes called a CAD (computer-aided design), GIS (geographic information system) large format and a technical printer, plotter printers have some advantages and disadvantages over format printers. Both types of printers are key output devices but are different in some ways. Plotter printers control an automated pencil, marker, or pen via digital instruction to physically draw lines on a printing medium, whether that’s paper or something else.
A prime difference between format and plotter printers lies in the file format output by each. Format printers generate raster (bitmap, pixel) images while plotters create vector images. Vector art is programmatically created using mathematical formulae in computer code which builds curves and lines dynamically between points, or nodes, specified in a digital art file by a designer.
Plotters are generally large printers used to output these vector graphics. These graphics are essentially continuous line art, while traditional printers cannot generate. Instead, traditional format printers make those lines out of separate dots. Because of this, plotters are actually capable of making bigger graphics.
Despite this advantage, plotters are used much less in current times because conventional large and wide-format printers are able to produce at the size, speed and scale most modern marketers desire. Plotters still retain a niche, however, mostly among the aforementioned cartographical and architectural crowd.
What do you print with a plotter?
A plotter printer creates very crisp and sharp images for your project due to its mechanical configuration and the file format used. Because of this, plotters are perfect for your:
- Architectural drawings
- Blueprints
- Mechanical drawings
- Circuit drawings
- Maps & charts
Cutting Plotters

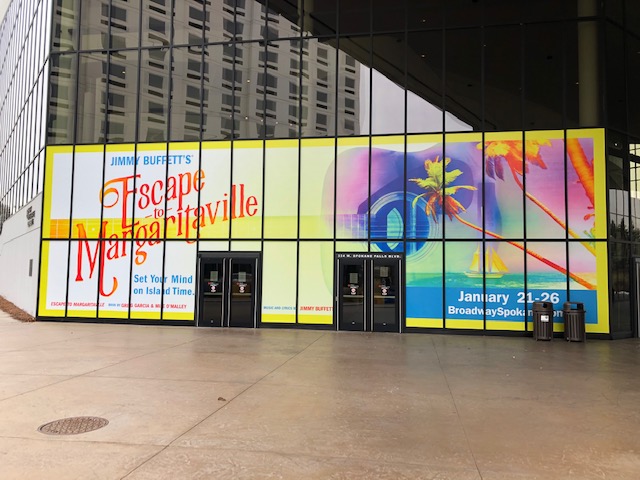

Though plotter ink printing is less-used now, there is a newer application for plotter printing technology that has created its very own niche. This is the cutting plotter. Cutting plotters are ingenious devices that replace the automated line drawing implement with a sharp cutting blade. The applications for this are many-fold, chief among them being the cutting of thin media such as vinyl. Marketers love using cutting plotters because they have opened up numerous eye-catching graphical possibilities for varied-shape advertisements on vehicles, signage, indoor ads and more.
Cutting plotters have greatly multiplied the options for creativity when it comes to large format printing projects. Not only does a designer have the actual “blank canvas” of the printing medium on which to display colorful, attention-grabbing images; now they can also create large-format projects which can take advantage of the medium’s physical shape within a space. Imagine the impactful difference between a simple movie poster versus a life-size standee cut to fit the imagery of movie characters.
Plotter Applications
While plotter printers currently are most often used for CAD, GIS and CAE (Computer-aided engineering) purposes, plotters still print with greater precision than traditional large-format printers.
Wide-format plotters generally offer a series of common widths when it comes to the size of media that can be printed on. Some of the most common are 11, 18, 24, 30, 36 and 42 inches, though there are other choices within that range. Having a set of standard dimensions helps reduce cost for large-scale customers of plotter printer projects.
Plotter Types

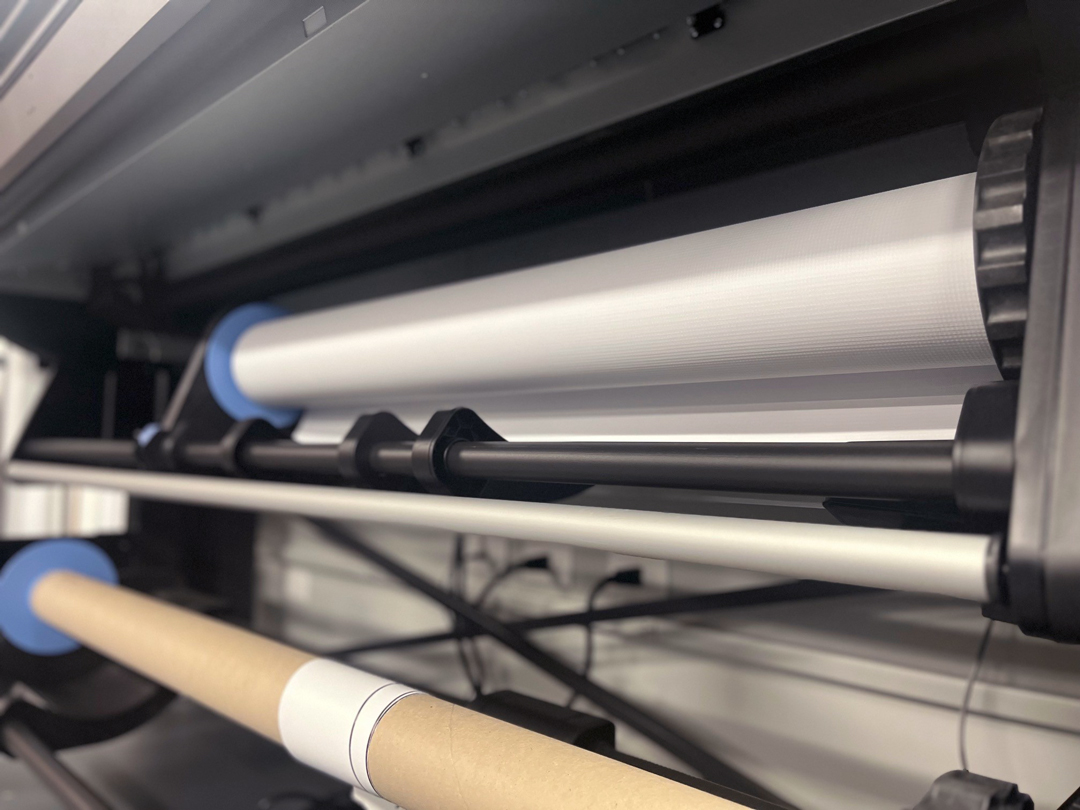

Flatbed and drum plotters are the two primary plotter printer variants. “Roller plotter” is another name for drum plotters. This type actually holds the printing medium on a cylindrical drum and spins it as the ink pens automatically zip around to create the lines dictated in the digital file. The two dimensions of movement allow lines to be crafted in all directions, including curves. Don’t confuse a drum printer with a drum plotter, though: A drum printer is an outdated device that rotates a cylinder a little at a time and only applies a single line of ink at a time.
There are a few other kinds of plotter printers on the market, as well:
Roller plotter: Much like a traditional office printer, paper (or other media) is mechanically pulled through the machine while the ink is applied along the way.
Pen / Inkjet plotter: Usually on the lower-cost end of the spectrum, inkjet plotters often utilize a system of tri-tonal inks to print high-quality color images.
Electrostatic plotter: This type of plotter uses a positively-charged toner to draw images on a negatively-charged paper.
While plotters offer a number of advantages for various kinds of printing projects, they are on average larger than large format traditional printers and tend to cost somewhat more. If a print house is operating with limited space, it can be difficult to find enough area to place a plotter printing machine.
Overall, though, the added creative capabilities of plotter printers can offset the need to extra space and higher cost. Between plotter printers’ specialized niches in mapmaking an architectural needs and the visual uniqueness that can be produced via the use of a cutting plotter, this type of printing device offers a lot of incentive both for a printing business as well as for the many customers who enjoy the amazing results.
